Import/Export Toolpaths

Import Toolpaths export

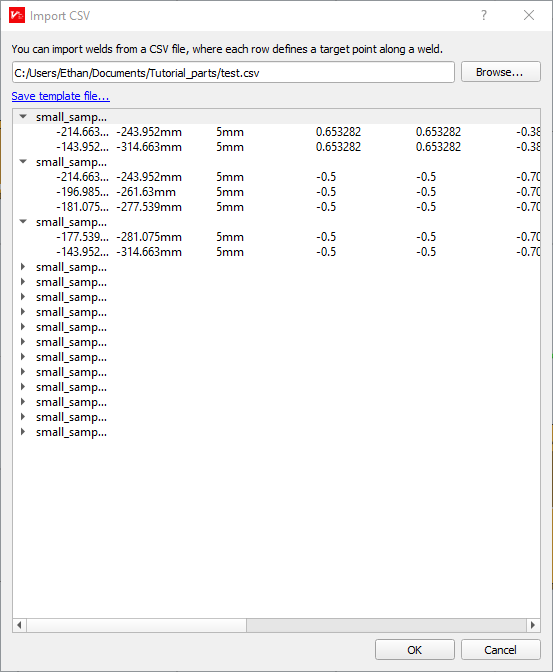

The weld import dialog

The export Import Toolpaths function can import a set of welds from a CSV file, where each row defines a target along a weld. Assists with integration of Weld with CAD packages and custom scripts.

The CSV file will require the following structure:

The weld import dialog

Import Dialog Options

  • Browse… Opens a file explorer to select a CSV file to import

  • Save template file… Saves a template file which can be used to preview the structure of the CSV file.

Export Toolpaths export

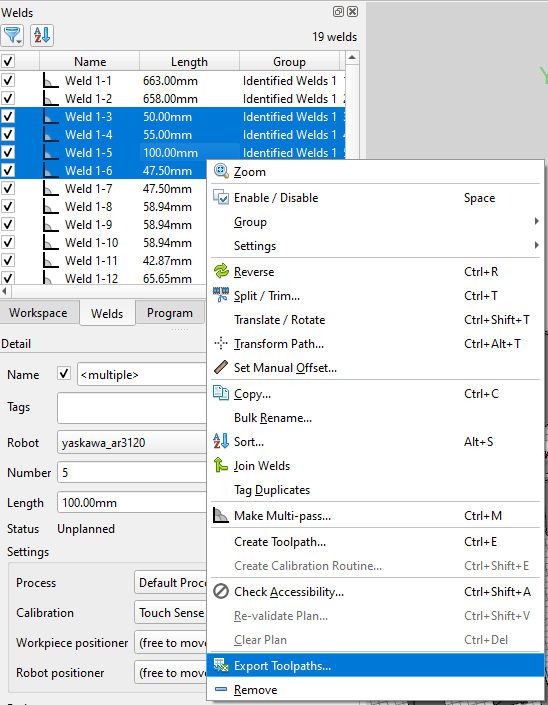

Toolpaths generated in weld can also be exported in this format. The export Export Toolpaths… can be opened from the context menu when any number of welds have been selected.

The weld import dialog

Exporting Selected Welds
