Переименование швов

This dialog allows you to rename multiple welds with a number suffix based on the order the weld appears in the weld list.

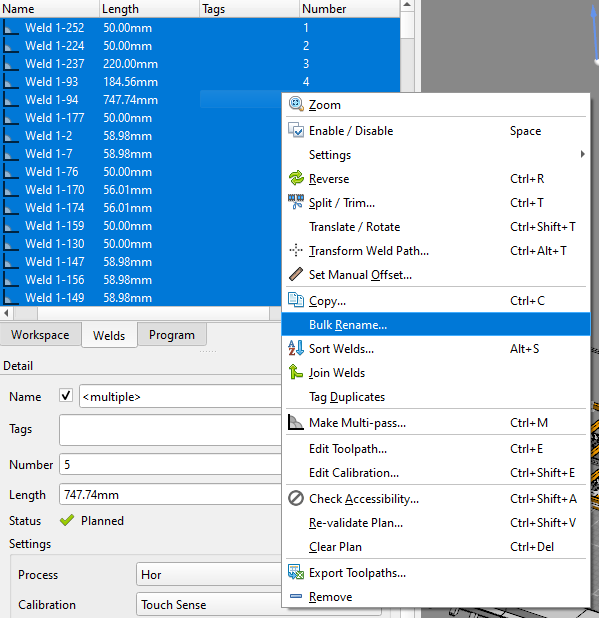

To open the dialogue, select the group of welds you wish to rename, then right-click and select Bulk Rename… from the context menu.

Rename Multiple Welds

To rename a single weld, just double click on it in the Welds tab, or edit the name directly in the Detail area.

Rename Multiple Welds

For example:

  1. Выберите сварные швы для переименования.

  2. Введите новое имя в диалоге. Например ‘Шов/Weld’.

  3. Нажмите ‘OK’

Выбранные сварные швы будут переименованы: “Шов 1”, “Шов 2”, “Шов 3”…
