Rename Welds

This dialog allows you to rename multiple welds with a number suffix based on the order the weld appears in the weld list.

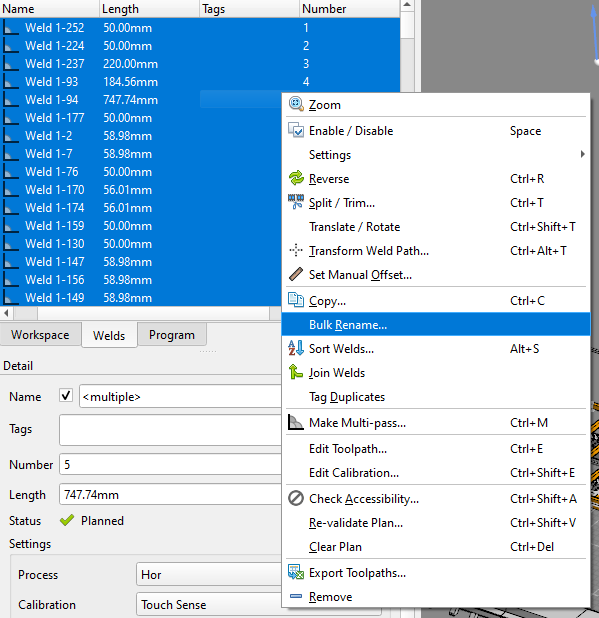

To open the dialogue, select the group of welds you wish to rename, then right-click and select Bulk Rename… from the context menu.

To rename a single weld, just double click on it in the Welds tab, or edit the name directly in the Detail area.

For example:

1. Select welds to be renamed.

2. Enter a new name in the dialog. For example ‘Weld ‘

3. Click ‘Ok’

The selected welds will then be renamed: ‘Weld 1’, ‘Weld 2’, ‘Weld 3’…
