Copy Welds

Creates copies of the currently selected weld(s) with equal spacing. To copy, welds, select one or more welds in the “Welds” tab, right click and select “Copy Welds…”. This will pop up the copy dialog shown below, and show a preview of copied welds in the main viewer.

There are three modes that can be used in the copy dialog;

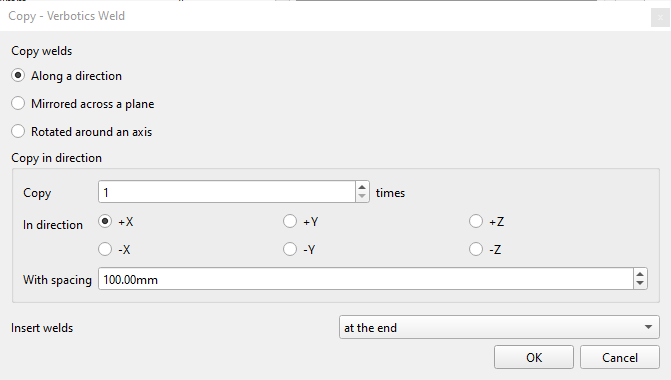

Along a direction

Copy # times: The number of new copies of the currently selected weld(s) that should be created.
In direction: selects the direction to copy the weld(s) in. This is relative to the workpiece frame.
With spacing: sets the distance between each subsequent copy of the weld(s).

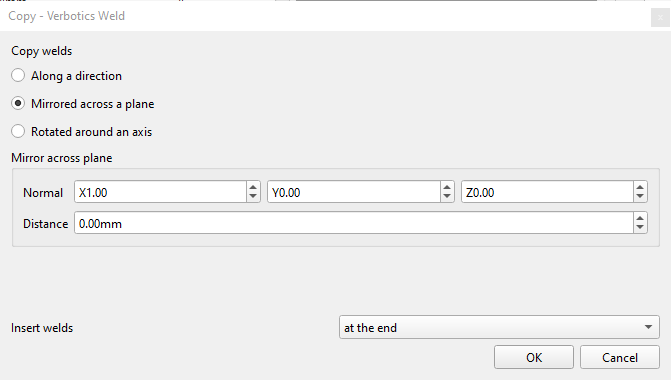

Mirrored across a plane

Normal: The direction of the normal of the plane welds will be mirrored along, relative to the workpiece frame.
Distance: The distance from the origin where the mirrored plane sits, along the specified normal.

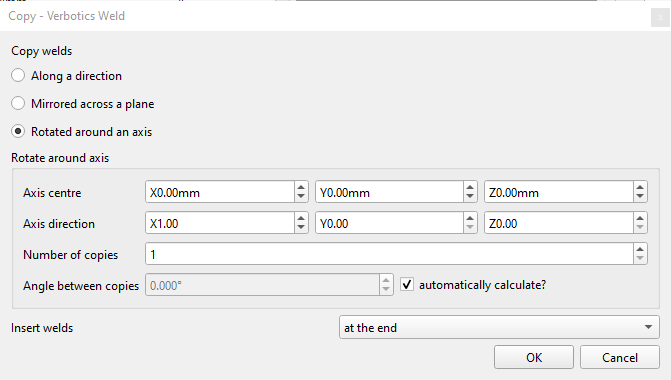

Rotated around an axis

Axis centre: The position of the origin of the axis.
Axis direction: The direction of the axis to copy around.
Number of copies: How many times to copy the weld.
Angle between copies: The rotation angle between each copy. By default this will be automatically calculated to evenly distribute each copy.

Insert Welds

Determines where the weld will be placed in the weld order. Can be set to either:

At the end: Copied welds will be placed at the very end of the weld order.
After source welds: Copied welds will be placed immediately after their source welds.
As new weld group: Copied welds will be placed into their own weld group separate from to their source welds.
