Assembly & Part Details

The Detail area shows details for an assembly and part selected in the Workspace tab.

Assembly Details

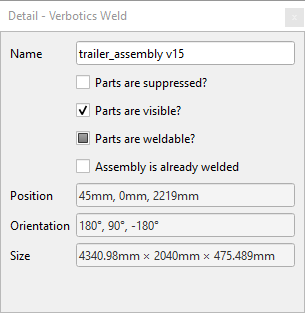

../../_images/details_widget_new.png

Assembly detail

  • Name: The name of the assembly. Becomes ‘multiple’ when more than one assembly is selected.

  • Parts are suppressed?: If enabled, suppresses the selected parts. Suppressed parts are not ignored by all functions in weld, and will be hidden from view.

  • Parts are visible?: The current visibility status of the assembly. Enabled is visible in the viewer, disabled is not visible in the viewer.

  • parts are weldable?: The current weldable status of the assembly. Enabled will allow the weld identification process to detect welds between the selected part and other parts that are also weldable. Typically used to denote jigging and fixturing.

  • Assembly is already welded: The current assembly and associated child parts are already welded. When enabled the weld identification system will not detect welds between the parts that make up that assembly based on the imported CAD hierarchy. It will still detect welds between that assembly and other weldable parts. Typically used to denote welded sub-assemblies.

  • Position: The position of the selected assembly to the origin as defined in the imported CAD model.

  • Orientation: The orientation of the selected assembly to the origin as defined in the imported CAD model. Not shown for subcomponents.

  • Size: Axis aligned bounding box of the selected assemblies.

Part Details

../../_images/part_details.png

Part Detail

  • Name: The name of the part. Becomes ‘multiple’ when more than one part is selected.

  • Suppressed: If enabled, suppresses the selected parts. Suppressed parts are ignored by all functions in weld, and will be hidden from view.

  • Visible: The current visibility status of the part. Enabled is visible in the viewer, disabled is not visible in the viewer.

  • Weldable: The current weldable status of the part. Enabled will allow the weld identification process to detect welds between the selected part and other parts that are also weldable. Typically used to denote jigging and fixturing.

  • Thickness: Displays the thickness of the part

  • Size: Axis aligned bounding box of the part.
