Presets

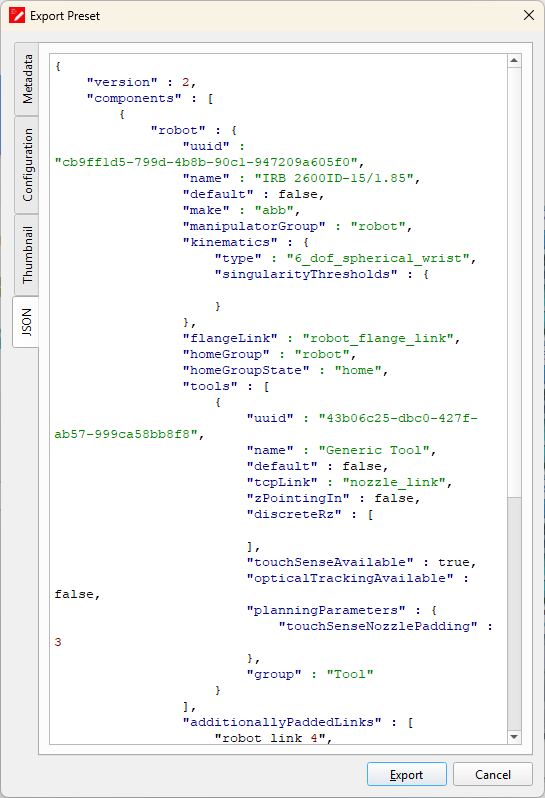

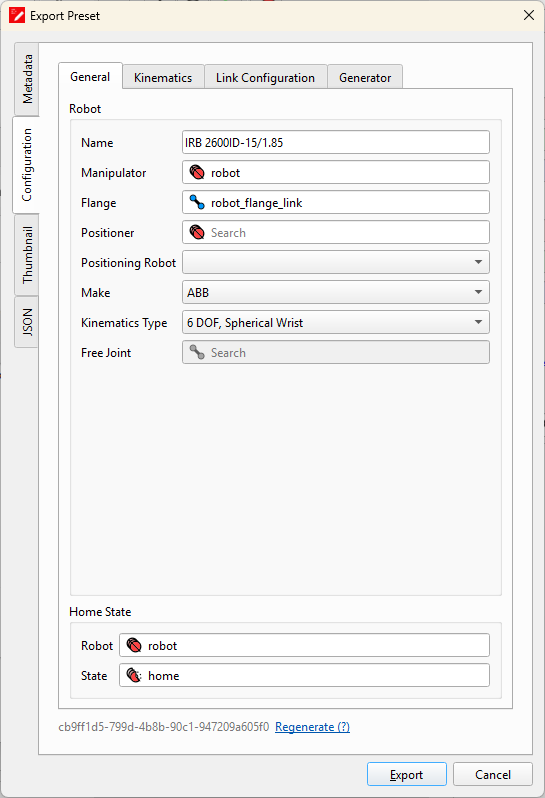

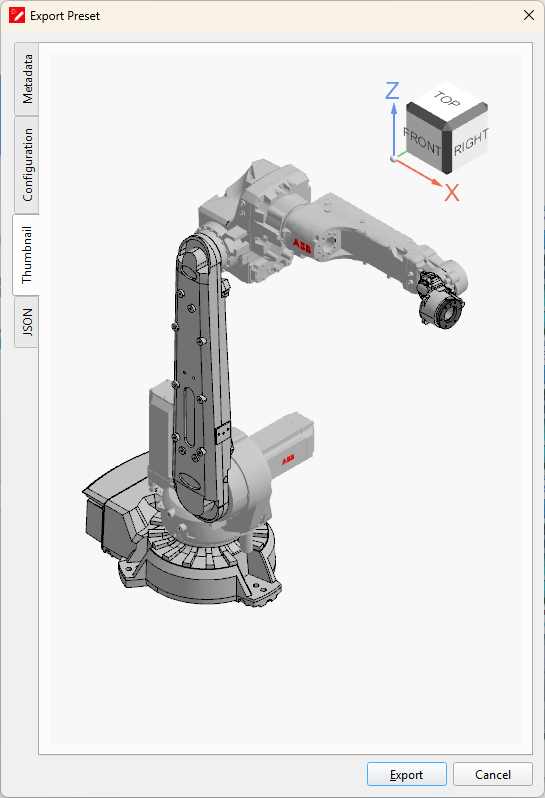

Presets are pre-made components, such as robots, tools and workstations, that can be added directly into a workcell. A library of standard presets is made available to licensed users, and your company may also have its own private presets.

The Presets panel is used for browsing, downloading and importing presets. By default it is located at the bottom of the left pane, alongside the Properties panel.

Preset Library

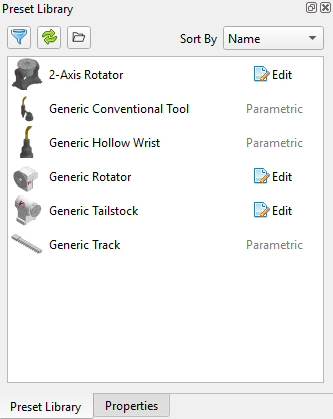

Presets Panel

The preset library lists all presets available to you, both from your local presets folder and from the presets available online through your Verbotics account. Presets are grouped by category, and sorted by manufacturer and name within each category. The categories are:

• Tools

• Workstations

• Robots

• Robot Positioners

• Other

• Templates

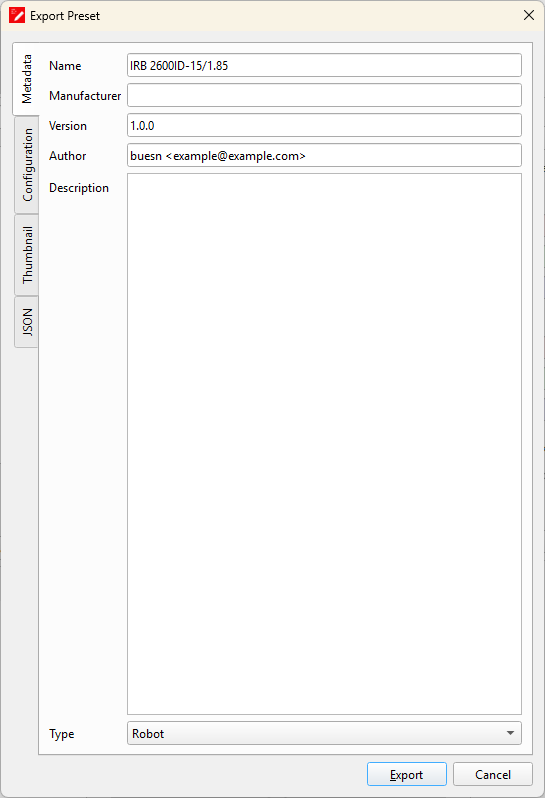

Hovering over a preset shows its name, manufacturer and version, along with whether it has been downloaded yet or has an update available.

Note

Online presets require internet access in order to be downloaded, however presets which have already been downloaded will remain available to use offline.

Adding Presets to a Workcell

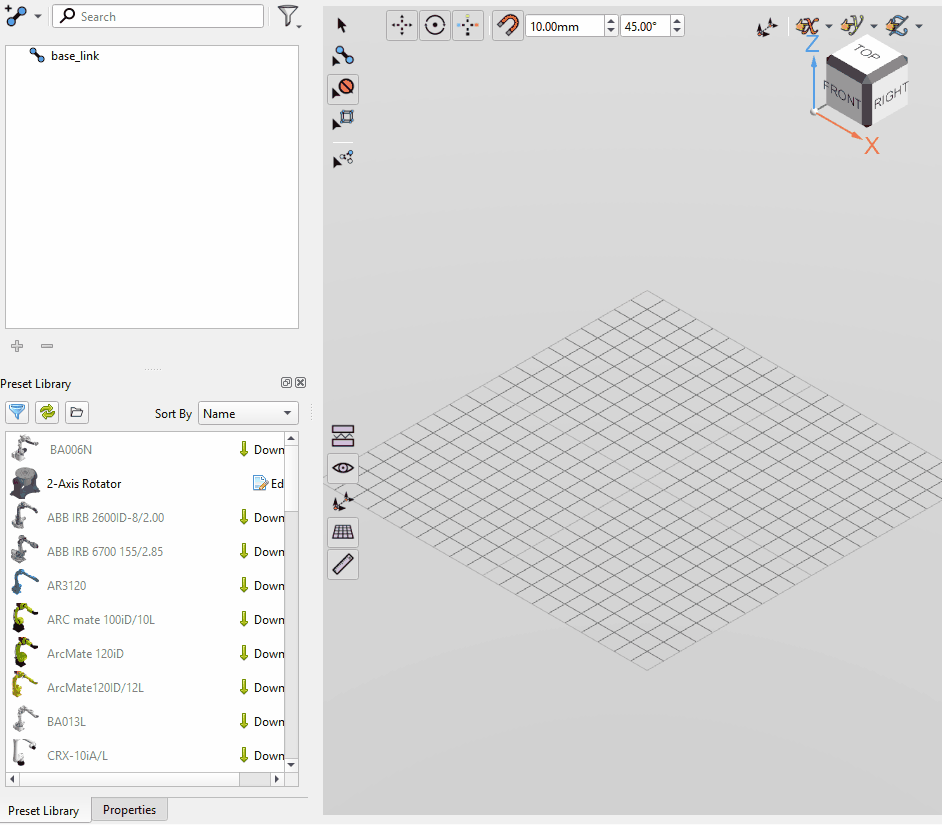

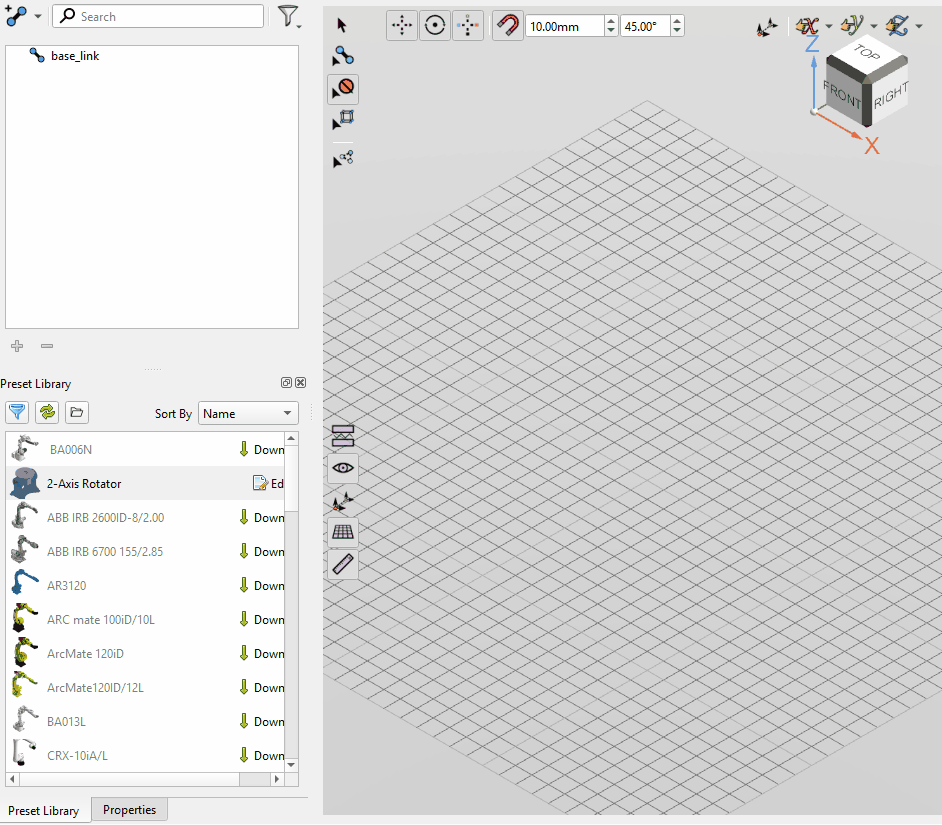

Presets can be added into a workcell by dragging and dropping them into either the 3D viewer, the Components Tree or the World Tree. While dragging a preset over the 3D viewer, the possible attachment points in the workcell are shown as blue spheres. A preset can also be imported by double-clicking it.

Dropping a preset onto an existing component of the same type in the Components Tree will replace that component with the preset.

Presets which have not been downloaded yet are shown with a download badge in the bottom right of their thumbnail, and will be downloaded automatically when imported. Presets with an update available are shown with an update badge in the top right of their thumbnail.

Context Menu

Right-clicking a preset opens a context menu with the following options. The options available depend on the status of the preset:

• Import: Imports the preset into the workcell. This is the same as double-clicking the preset.

• Download: Downloads an online preset without importing it.

• Update to latest: Downloads the latest version of a preset which has an update available.

• Revert to online version: Discards local changes made to a downloaded preset, and restores the online version.

• Edit: Opens the preset in Cell Editor for editing.

• Show on Disk: Opens the folder containing the downloaded preset.

• Show in Accounts Portal: Opens the preset in the accounts portal.

Preset Library Tools

Search

The search bar at the top of the panel filters the preset library to only show presets matching the search.

Filter

The button opens a menu used to filter the presets shown in the library. The number of presets currently shown, and the total number of presets, are shown next to the button.

Presets can be filtered by:

• Category: Show only presets of a single category, or (any) to show all categories.

• Manufacturers: Show only presets from the selected manufacturers, or (all) to show presets from every manufacturer.

Refresh

Refreshes the preset library with the server, updating it with any changes to the online presets. If the library could not be synchronised, the button shows a warning, and hovering over it shows the reason.

Note

The location of your local presets folder can be changed in the Preferences.
