Идентификация швов

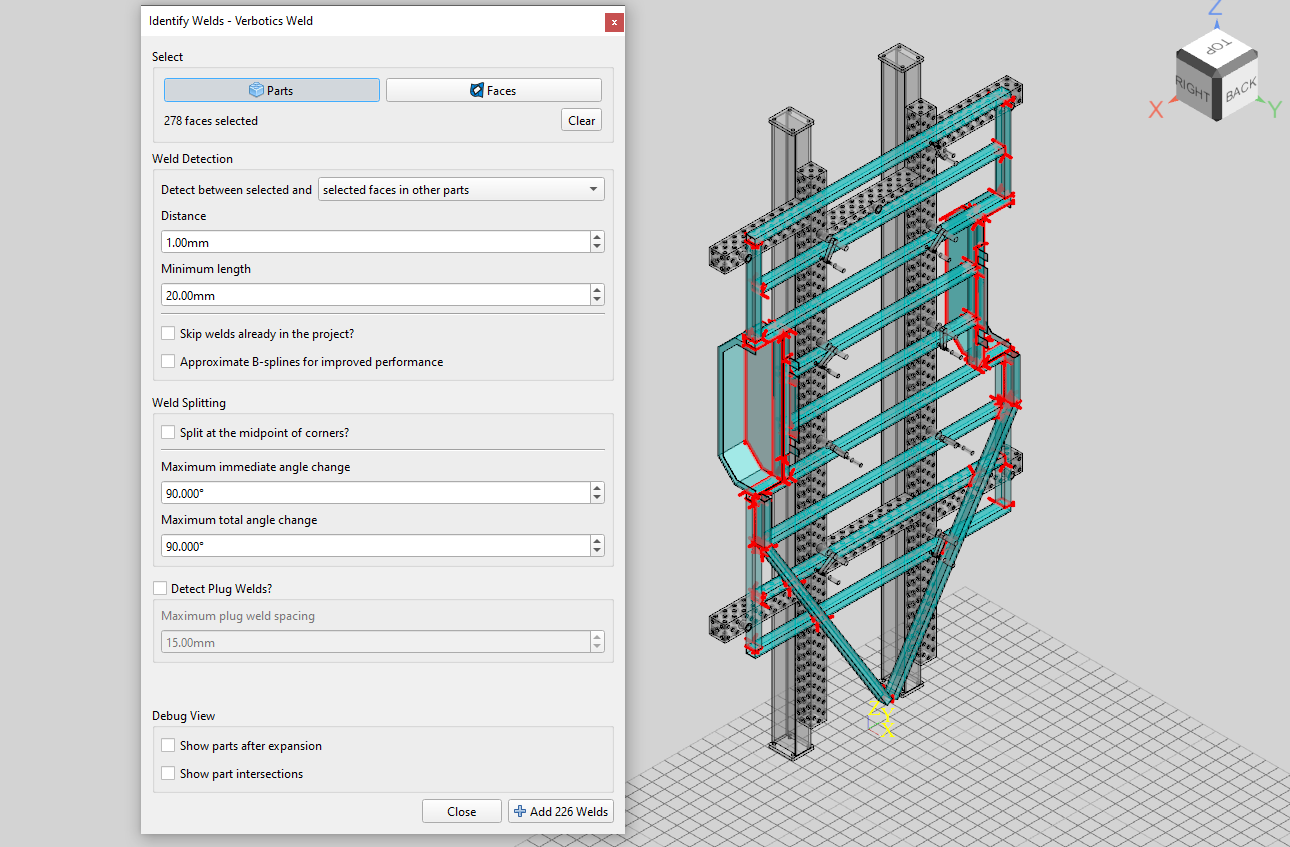

The «Identify Welds» dialog analyses your part CAD model to automatically identify where weld paths should be located, and the optimal wire position. This process can take a moderate amount of time for large or complex parts, indicated by the progress bar shown in the bottom left of the dialog after changes are made. Intermediate identification results will be shown in the 3D viewer, and you can click «add» at any time to accept a partial result.
If you want to select / deselect a part or face to be include in the identifier“s analysis, you can click on the part/face. It will then switch colour and the identification will be re-started. You can also click on an identified weld to prevent it from being created.
В диалоговом окне идентификации сварных швов имеется ряд опций для управления автоматического обнаружения сварных швов в САПР-модели.
Select
Parts/Faces
Switches the selection mode of the mouse in the 3D viewer. When parts is chosen, all faces of the part clicked in the viewer will be selected. If faces is chosen, only the individual face clicked in the viewer will be selected.
Default Value: Parts
Clear/Select All
If at least one face is selected in the viewer, this button will appear as a clear button, allowing you to deselect all faces/parts. If no faces/parts are selected, this button will instead show select all which when clicked will select all faces in the viewer.
Weld Identification Options
Detect Between Selected and…
Determines which faces welds are able to be detected between. 3 modes are available to select from:
all weldable parts: Identifies welds between all weldable parts in the viewer regardless of selection.
selected faces in other parts: Identifies welds between only faces selected in the viewer. Additionally, these faces must be from 2 different parts in order for a weld to be identified.
all selected faces: Identifies welds between all selected faces in the viewer, regardless of the part they are attached to.
Default Value: all weldable parts
Расстояние обнаружения швов
From each face of the CAD model, this controls how far to check for intersecting faces that may produce a weld. A value of zero will require parts to be intersecting for welds to be identified. If parts are drawn with gaps between them, and welds should be identified between those parts, a value high enough to span at least half the gap should be used. For example, if a butt weld is drawn with a 3mm gap (for example, to allow a full penetration weld), a value greater than 1.5mm should be used to identify a weld in that location.
Значение по умолчанию/Default Value: 1mm
Минимальная длина шва/Minimum Weld Length
Минимальная длина сварного шва, которая должна рассматриваться как сварной шов. Предотвращает обнаружение очень коротких сварных швов там, где они не требуются.
Значение по умолчанию/Default Value: 5mm
Пропустить сварные швы, уже присутствующие в проекте/Skip Welds Already Present in the Project?
Если эта опция включена, то это не добавит никаких обнаруженных сварных швов, которые уже присутствуют в проекте. Они будут представлены в виде тонких черных линий в диалоговом окне Идентификация швов/Weld Detection. Эта функция удобна при идентификации сварных швов с различными настройками, чтобы избежать добавления дубликатов.
Значение по умолчанию/Default Value: деактивировано/disabled
Plug Weld Options
Detect plug welds
If enabled, suitable locations for a plug weld will be identified. These welds will appear parallel to the centre of suitable spacing for the plug weld.
Значение по умолчанию/Default Value: деактивировано/disabled
Maximum plug weld spacing
The maximum distance between edges surrounding a space in which a plug weld is permissible. Any edges further apart than this value will not have plug welds detected between them.
Default Value: 10mm
Разделение швов/Weld Splitting
Максимальное локальное изменение угла/Maximum immediate angle change
Максимальное изменение угла между двумя последовательными точками сварного шва. Оно вычисляется с учетом как изменения номинального направления сварочной проволоки, так и изменения направления траектории шва. Обычно это означает, что при повороте шва на угол 90° на конце листа угол между соседними точками угла изменяется на 180°.
При меньших значениях будет происходить разделение сварных швов на углах, поэтому надо использовать большие значения, чтобы траектория сварки могла перемещаться вокруг этих углов без создания сварных швов с началом/концом в углах. Сварки на углах могут создать некоторые трудности в процессе планирования.
Значение по умолчанию/Default Value: 45°
Максимальное изменение полного угла/Maximum total angle change
Максимальное изменение угла по всей длине шва. Оно вычисляется с учетом как изменения номинального направления сварочной проволоки, так и изменения направления траектории шва. Обычно это означает, что при повороте шва на угол 90° на конце листа угол между соседними точками угла изменяется на 180°. Это функция удобна для ограничения размеров кольцевых сварных швов и разбивки их на более мелкие секторы, если возникнут сложности с планирование всей круговой траектории целиков.
Значение по умолчанию/Default Value: 360°
