Generate Code

Welds that have been successfully planned with the Plan dialog are able to be converted into a program for the cell’s robot using the Generate Code code-export button found in the ribbon menu.

This button will only be enabled if a valid license has been applied to Weld by logging into your Verbotics Account. Demo versions of the Verbotics Weld software won’t have this feature enabled.

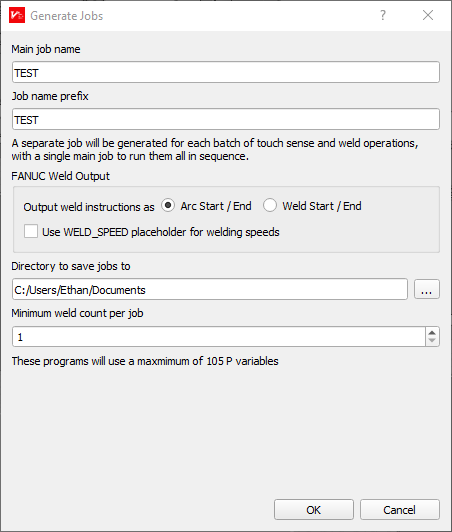

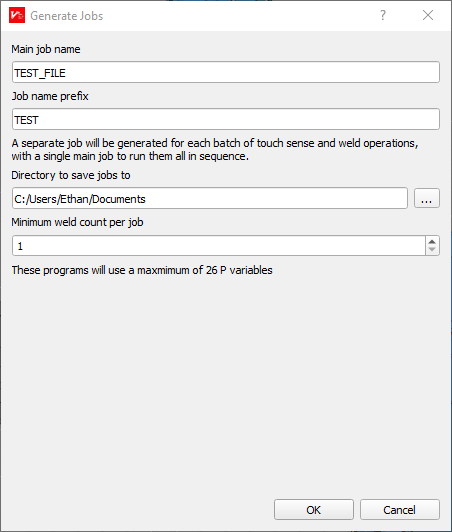

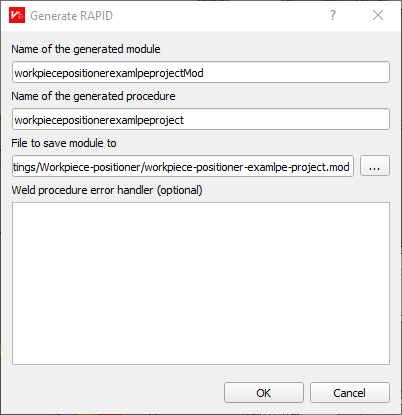

Clicking the Generate Code button will load a window containing options for generating and exporting code.

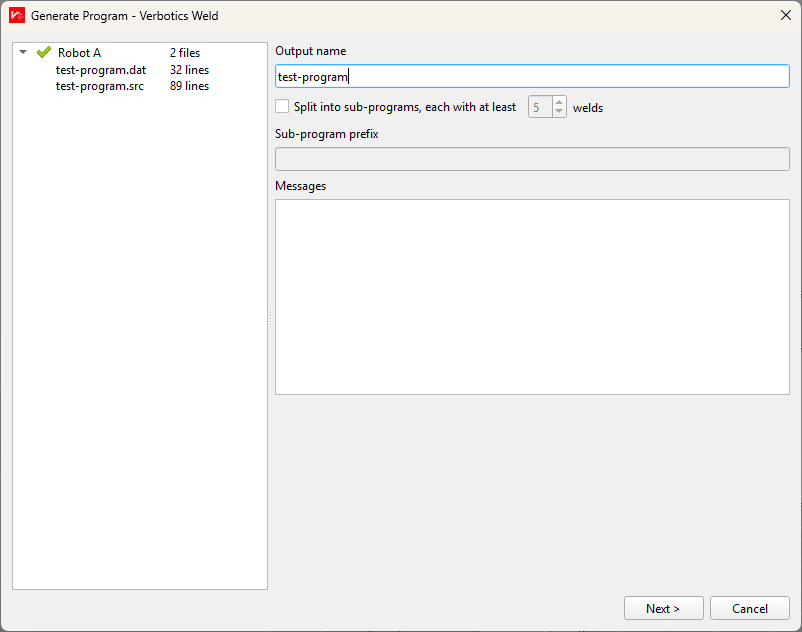

Generate Program Menu

../../_images/generate-program.png

Generate Program Menu

The Generate Program menu consists of several pages of pages. The first page is split into 2 sections. On the left, is a column listing each robot contained in the current project that has planned welds to generate into code.

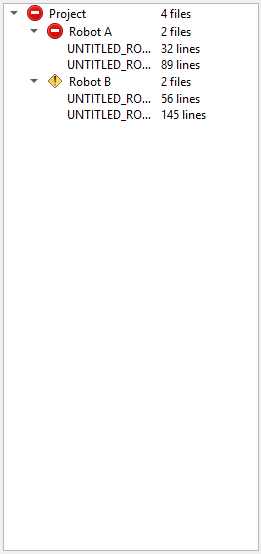

../../_images/multi-robot.png

Listed Robots included in the Code Generation

Each robot will have the programs generated for that robot listed beneath. Selecting these programs with open a preview of the selected program on the right.

When the menu first loads, and whenever a robot is selected from the list, options and other details relating to code generation are displayed on the right. These include:

  • Output Name: The name to be given to each file generated.

  • Sub-program prefix: The prefix to be added before each sub-program. Disabled if the current project won’t be generating sub-programs.

  • Messages: Lists errors and warnings with the weld program being generated. Proceeding without fixing the listed issues may result in the generated program not operating as expected.

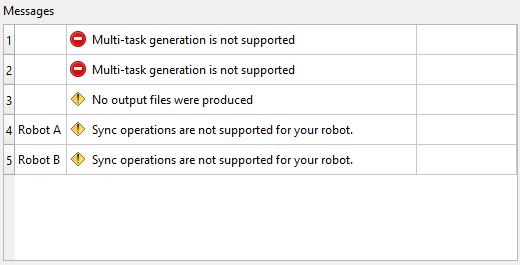

../../_images/issues.png

Errors and Warnings with Code Generation

At the bottom of the window, are the Next and Cancel buttons. Next will load the second page of the Generate Program menu.

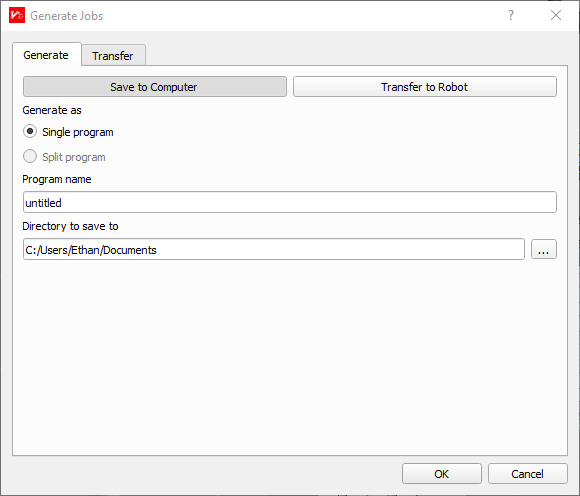

The second page lists 2 options for selecting the location to save the generated files to:

  • Save to a directory: Saves to the location specified in the text-box. The ... button can be used to browse to the save location using the computers file browser.

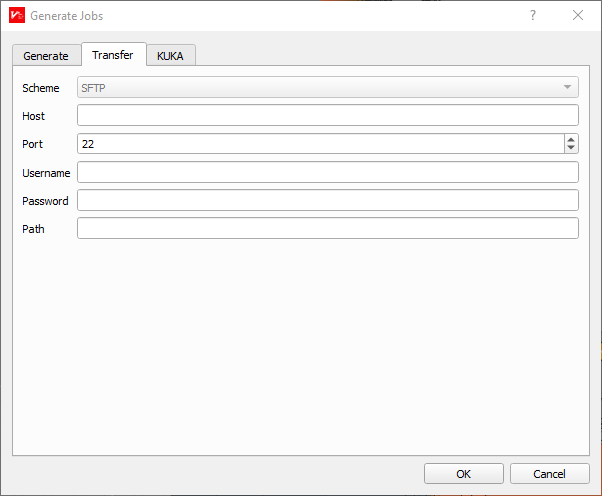

  • Transfer to Robot: If your robot and cell supports this feature, the generated program can be sent directly to a connected robot.

Code Generators

In Verbotics Weld, a code generator refers to a file used by Verbotics to convert weld programs from the format used by Verbotics into the format required for a given robot to run the program.

Verbotics has built-in generators for all supported robot makes. A list of these makes can be found here.

In addition to built-in generators, Verbotics may provide you with Custom code generators should your cell require it. Should your cell require a custom format for your robot, Verbotics can provide consultancy services by contacting us here.

If a Verbotics employee or integrator provides you with a custom code generator, this can be added to Verbotics by navigating to Preferences->Generators->Open Generator Directory. This will open the generator directory in your file browser, where you can place the provided custom code generator.

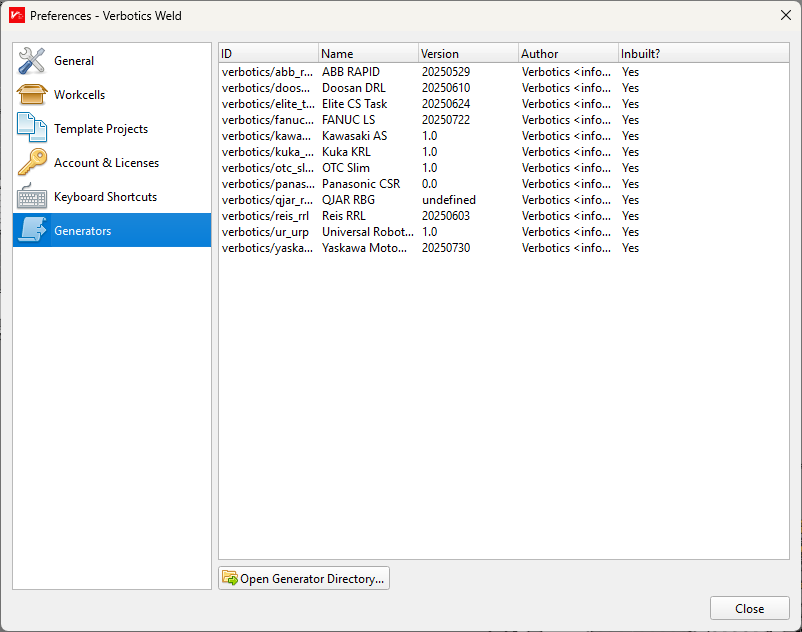

../../_images/generator-preferences.png

Generator Preferences

The code generator for your robot can then be swapped to a custom generator by opening a project you wish to generate code for, then navigating to Project Settings->Program->Program and then selecting the custom generator from the drop-down box at the top of the project settings menu. This drop-down box will list all code generators currently available to use.

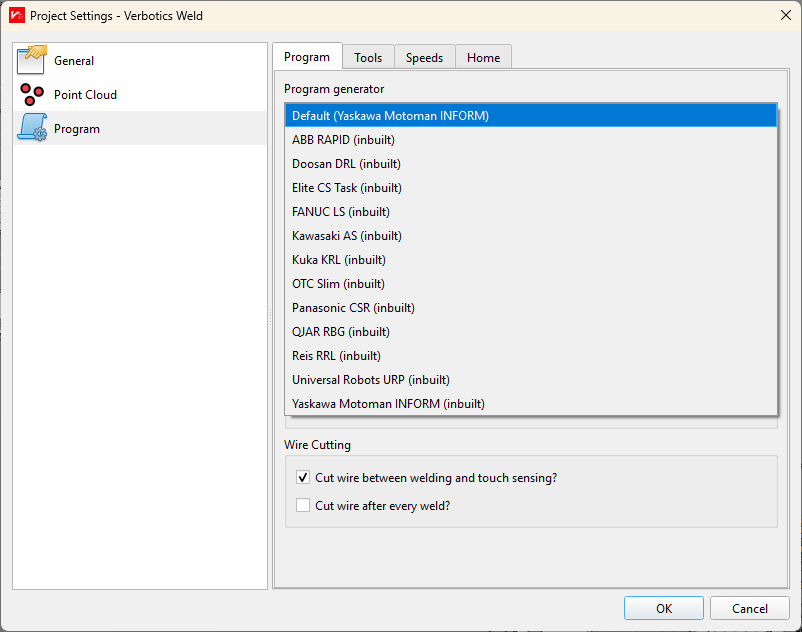

../../_images/swap-generator.png

Selecting Generator for Current Program

Note

If your project uses multiple robots, you will need to apply the new generator to the program settings for each robot individually.
